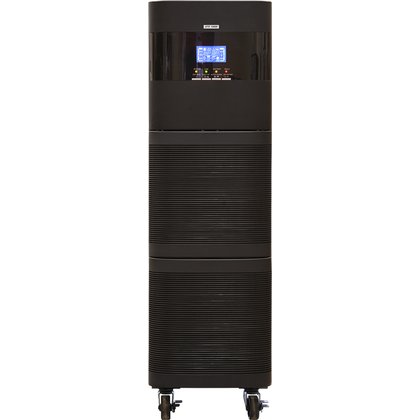

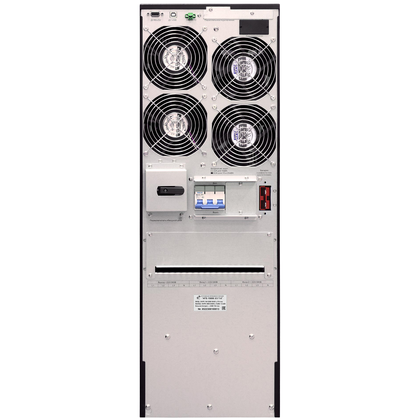

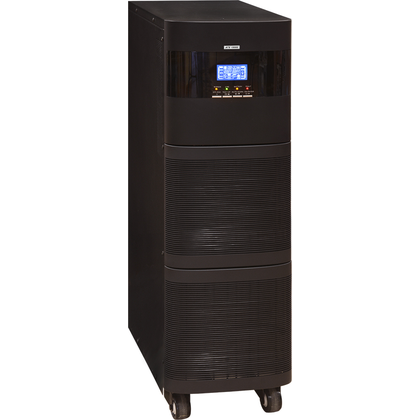

ATS 15000 3/3 T-X

On-line uninterruptible power sources with a unique set of energy saving functions. Intended for the organization of uninterruptible power supply systems and reliable protection of single-phase and three-phase equipment against power quality defects in AC grids.



Nominal rating power Pnom, kVA/kW 15/13,5
Number of phases at input/output 3/3
Charging current provided by the UPS charger, A 4,0
Built-in rechargeable batteries No
Battery rated voltage, V 240
Overall dimensions (HxWxD), mm 826x250x592
Weight, kg 40
Scope of use:
  • Business centers and shopping mallsBusiness centers and shopping malls
  • Telecommunication equipmentTelecommunication equipment
  • Servers, workstationsServers, workstations
  • Industrial equipmentIndustrial equipment
Special features of EcoPower series
  • High overload capacity allows you to connect loads with large starting currentsHigh overload capacity allows you to connect loads with large starting currents
  • Stabilization of output voltage parameters in a wide range of grid parametersStabilization of output voltage parameters in a wide range of grid parameters
  • Increased input and output power factorsIncreased input and output power factors
  • Output voltage shape — clear sine waveOutput voltage shape — clear sine wave
  • Increase of power output and multiple scaling of accumulator battery total capacityIncrease of power output and multiple scaling of accumulator battery total capacity
  • Long time of autonomous workLong time of autonomous work
