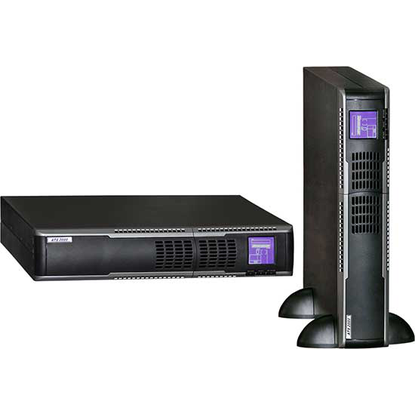

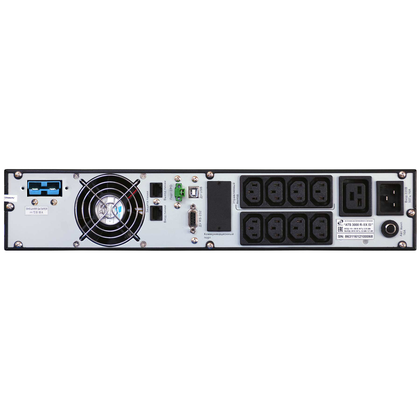

ATS 3000 R-BX (S)

On-line uninterruptible power sources with a unique set of energy saving functions.

UPSs protect your essential equipment against power quality defects in AC grids.



Rated power Pnom, VA/W 3000/2700
Charging current provided by the UPS charger, A 4
Built-in rechargeable batteries Yes
Battery rated voltage, V 72
Overall dimensions (HxWxD), mm 88(2U)x438x640
Weight, kg 27,4
Scope of use:
  • Telecommunication equipmentTelecommunication equipment
  • Servers, workstationsServers, workstations
  • Office equipmentOffice equipment
  • Industrial equipmentIndustrial equipment
Specification
  • Unique energy saving functionUnique energy saving function
  • Increase of power output and multiple scaling of accumulator battery total capacityIncrease of power output and multiple scaling of accumulator battery total capacity
  • High overload capacity allows you to connect loads with large starting currentsHigh overload capacity allows you to connect loads with large starting currents
  • Stabilization of output voltage parameters in a wide range of grid parametersStabilization of output voltage parameters in a wide range of grid parameters
  • Increased input and output power factorsIncreased input and output power factors
  • Output voltage shape — clear sine waveOutput voltage shape — clear sine wave
