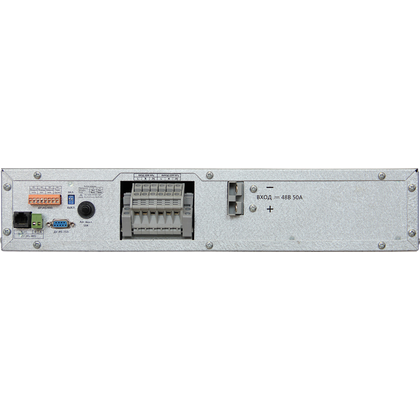

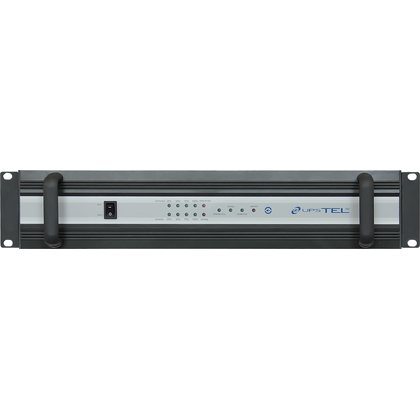

Inverter with sine wave output and built-in automatic bypass power. Intended for uninterruptible power supply to essential consumers with an alternating voltage of 220 V/50 Hz from two power sources - AC (220V/50 Hz) and DC (48V).
Nominal input voltage for AC / DC grid, V | 220(230) / 48 |
Input voltage range for AC/DC, V | 156-288 / 40-60 |
Nominal AC output voltage sets when powered by DC source, V | 208 / 220 / 230 / 240 |
Nominal output capacity, VA/W | 1000/800 |
Overall dimensions (WxHxD), mm | 483(19”)x88(2U)х395 |
Mass, kg | 8,2 |
