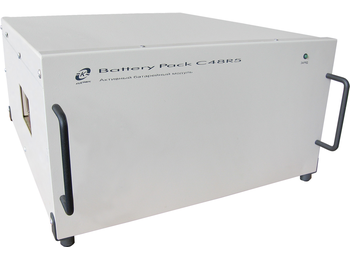

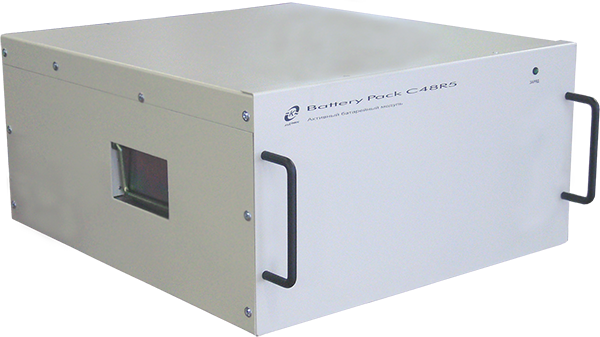

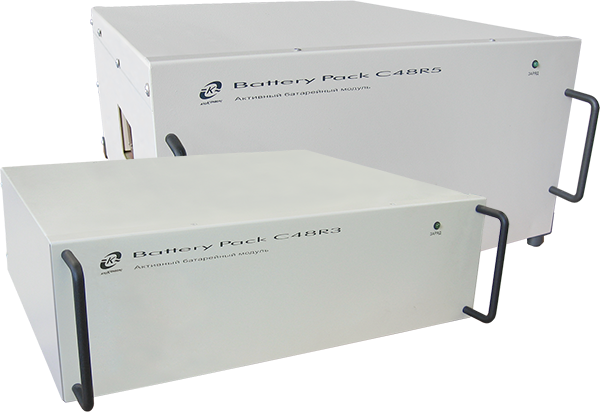

Active battery modules (ABM) like “Battery Pack C48R” are used to work with single-phase inverters and uninterruptible power units like "UPStel", as well as with other uninterruptible power supply units and inverters requiring a 48V backup battery. ABMs are intended for installation into 19” racks, they have a height of 3U and 5U.
Active Battery Modules for Inverters and UpStel UPSU
Nominal voltage of built-in rechargeable battery, V | 48 |
Nominal capacity, A*h | 14 |
Nominal voltage of one battery, V | 12 |
Rated capacity of one battery, A*h | 7 |
Number of batteries connected in series in one battery group, pcs | 4 |
Number of battery groups | 2 |
Overall dimensions (WxHxD), mm | 133(3U)х436х420 |
Mass, kg | 30 |
Nominal voltage of built-in rechargeable battery, V | 48 |
Nominal capacity, A*h | 24-28 |
Nominal voltage of one battery, V | 12 |
Rated capacity of one battery, A*h | 24-28 |
Number of batteries connected in series in one battery group, pcs | 4 |
Number of battery groups | 1 |
Overall dimensions (WxHxD), mm | 222(5U)х436х530 |
Mass, kg | 59 |
Nominal voltage of built-in rechargeable battery, V | 48 |
Nominal capacity, A*h | 40-45 |
Nominal voltage of one battery, V | 12 |
Rated capacity of one battery, A*h | 40-45 |
Number of batteries connected in series in one battery group, pcs | 4 |
Number of battery groups | 1 |
Overall dimensions (WxHxD), mm | 222(5U)х436х530 |
Mass, kg | 85 |
