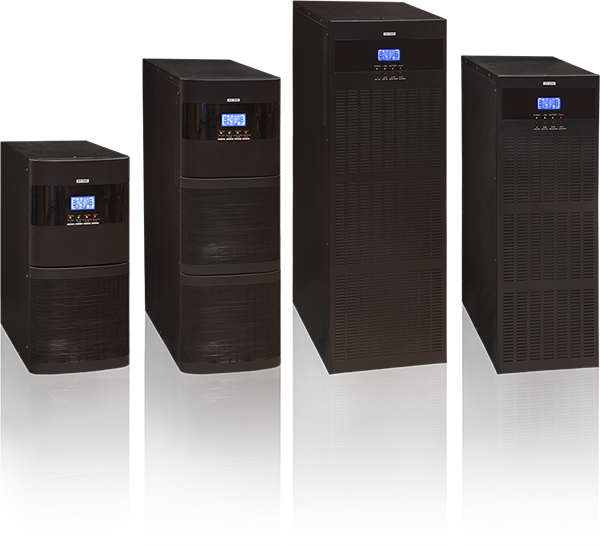

EcoPower Three-Phase UPS (On-Line)

22 товара

On-line uninterruptible power sources with a unique set of energy saving functions. Intended for the organization of uninterruptible power supply systems and reliable protection of single-phase and three-phase equipment against power quality defects in AC grids.



Due to modern circuit design solutions EcoPower UPS provide a high degree of protection both for industrial and domestic equipment.



Uninterruptible Power Supplies Questionnaire

Special features of EcoPower series

  • High overload capacity allows you to connect loads with large starting currents High overload capacity allows you to connect loads with large starting currents
  • Stabilization of output voltage parameters in a wide range of grid parameters Stabilization of output voltage parameters in a wide range of grid parameters
  • Increased input and output power factors Increased input and output power factors
  • Increase of power output and multiple scaling of accumulator battery total capacity Increase of power output and multiple scaling of accumulator battery total capacity
Special features of EcoPower series
Filter
UPS power, VA:
Built-in batteries:
Version:
Sort by:
Трёхфазные ИБП серии EcoPower (On-Line) ATS 10000 3/1 T-X (R)
Nominal rating power Pnom, kVA/kW 10/9
Number of phases at input/output 3/1
Charging current provided by the UPS charger, A 4,0
Built-in rechargeable batteries No
Battery rated voltage, V 240
Overall dimensions (HxWxD), mm 133(3U)x438x668
Weight, kg 22
Трёхфазные ИБП серии EcoPower (On-Line) ATS 10000 3/3 T-X (R)
Nominal rating power Pnom, kVA/kW 10/9
Number of phases at input/output 3/3
Charging current provided by the UPS charger, A 4,0
Built-in rechargeable batteries No
Battery rated voltage, V 240
Overall dimensions (HxWxD), mm 266(6U)x438x668
Weight, kg 42
Трёхфазные ИБП серии EcoPower (On-Line)  ATS 10000 3/1 T-BX
Nominal rating power Pnom, kVA/kW 10/9
Number of phases at input/output 3/1
Charging current provided by the UPS charger, A 1,0
Built-in rechargeable batteries Yes
Battery rated voltage, V 240
Overall dimensions (HxWxD), mm 576x250x592
Weight, kg 83
Трёхфазные ИБП серии EcoPower (On-Line) ATS 10000 3/1 T-X
Nominal rating power Pnom, kVA/kW 10/9
Number of phases at input/output 3/1
Charging current provided by the UPS charger, A 4,0
Built-in rechargeable batteries No
Battery rated voltage, V 240
Overall dimensions (HxWxD), mm 576x250x592
Weight, kg 28
Трёхфазные ИБП серии EcoPower (On-Line) ATS 10000 3/3 T-BX
Nominal rating power Pnom, kVA/kW 10/9
Number of phases at input/output 3/3
Charging current provided by the UPS charger, A 1,0
Built-in rechargeable batteries Yes
Battery rated voltage, V 240
Overall dimensions (HxWxD), mm 826x250x815
Weight, kg 109
Трёхфазные ИБП серии EcoPower (On-Line) ATS 10000 3/3 T-X
Nominal rating power Pnom, kVA/kW 10/9
Number of phases at input/output 3/3
Charging current provided by the UPS charger, A 4,0
Built-in rechargeable batteries No
Battery rated voltage, V 240
Overall dimensions (HxWxD), mm 826x250x592
Weight, kg 38
Трёхфазные ИБП серии EcoPower (On-Line) ATS 15000 3/1 T-X (R)
Nominal rating power Pnom, kVA/kW 15/13,5
Number of phases at input/output 3/1
Charging current provided by the UPS charger, A 4,0
Built-in rechargeable batteries No
Battery rated voltage, V 240
Overall dimensions (HxWxD), mm 266(6U)x438x668
Weight, kg 45
Трёхфазные ИБП серии EcoPower (On-Line) ATS 15000 3/3 T-X (R)
Nominal rating power Pnom, kVA/kW 15/13,5
Number of phases at input/output 3/3
Charging current provided by the UPS charger, A 4,0
Built-in rechargeable batteries No
Battery rated voltage, V 240
Overall dimensions (HxWxD), mm 266(6U)x438x668
Weight, kg 45
Трёхфазные ИБП серии EcoPower (On-Line) ATS 15000 3/1 T-BX
Nominal rating power Pnom, kVA/kW 15/13,5
Number of phases at input/output 3/1
Charging current provided by the UPS charger, A 2,0
Built-in rechargeable batteries Yes
Battery rated voltage, V 240
Overall dimensions (HxWxD), mm 826x250x815
Weight, kg 164
Трёхфазные ИБП серии EcoPower (On-Line) ATS 15000 3/1 T-X
Nominal rating power Pnom, kVA/kW 15/13,5
Number of phases at input/output 3/1
Charging current provided by the UPS charger, A 8,0
Built-in rechargeable batteries No
Battery rated voltage, V 240
Overall dimensions (HxWxD), mm 576x250x592
Weight, kg 43
Трёхфазные ИБП серии EcoPower (On-Line) ATS 15000 3/3 T-BX
Nominal rating power Pnom, kVA/kW 15/13,5
Number of phases at input/output 3/3
Charging current provided by the UPS charger, A 2,0
Built-in rechargeable batteries Yes
Battery rated voltage, V 240
Overall dimensions (HxWxD), mm 826x250x815
Weight, kg 164
Трёхфазные ИБП серии EcoPower (On-Line) ATS 15000 3/3 T-X
Nominal rating power Pnom, kVA/kW 15/13,5
Number of phases at input/output 3/3
Charging current provided by the UPS charger, A 4,0
Built-in rechargeable batteries No
Battery rated voltage, V 240
Overall dimensions (HxWxD), mm 826x250x592
Weight, kg 40
Трёхфазные ИБП серии EcoPower (On-Line) ATS 20000 3/1 T-X (R)
Nominal rating power Pnom, kVA/kW 20/18
Number of phases at input/output 3/1
Charging current provided by the UPS charger, A 4,0
Built-in rechargeable batteries No
Battery rated voltage, V 240
Overall dimensions (HxWxD), mm 266(6U)x438x668
Weight, kg 45
Трёхфазные ИБП серии EcoPower (On-Line) ATS 20000 3/3 T-X (R)
Nominal rating power Pnom, kVA/kW 20/18
Number of phases at input/output 3/3
Charging current provided by the UPS charger, A 4,0
Built-in rechargeable batteries No
Battery rated voltage, V 240
Overall dimensions (HxWxD), mm 266(6U)x438x668
Weight, kg 45
Трёхфазные ИБП серии EcoPower (On-Line) ATS 20000 3/1 T-BX
Nominal rating power Pnom, kVA/kW 20/18
Number of phases at input/output 3/1
Charging current provided by the UPS charger, A 2,0
Built-in rechargeable batteries Yes
Battery rated voltage, V 240
Overall dimensions (HxWxD), mm 826x250x815
Weight, kg 164
Трёхфазные ИБП серии EcoPower (On-Line) ATS 20000 3/1 T-X
Nominal rating power Pnom, kVA/kW 20/18
Number of phases at input/output 3/1
Charging current provided by the UPS charger, A 8,0
Built-in rechargeable batteries No
Battery rated voltage, V 240
Overall dimensions (HxWxD), mm 576x250x592
Weight, kg 43
Трёхфазные ИБП серии EcoPower (On-Line) ATS 20000 3/3 T-BX
Nominal rating power Pnom, kVA/kW 20/18
Number of phases at input/output 3/3
Charging current provided by the UPS charger, A 2,0
Built-in rechargeable batteries Yes
Battery rated voltage, V 240
Overall dimensions (HxWxD), mm 826x250x815
Weight, kg 164
Трёхфазные ИБП серии EcoPower (On-Line) ATS 20000 3/3 T-X
Nominal rating power Pnom, kVA/kW 20/18
Number of phases at input/output 3/3
Charging current provided by the UPS charger, A 4,0
Built-in rechargeable batteries No
Battery rated voltage, V 240
Overall dimensions (HxWxD), mm 826x250x592
Weight, kg 40
Трёхфазные ИБП серии EcoPower (On-Line) ATS 30000 3/1 T-BX
Nominal rating power Pnom, kVA/kW 30/27
Number of phases at input/output 3/1
Charging current provided by the UPS charger, A 4,0
Built-in rechargeable batteries Yes
Battery rated voltage, V 240
Overall dimensions (HxWxD), mm 1000x300x815
Weight, kg 234
Трёхфазные ИБП серии EcoPower (On-Line) ATS 30000 3/1 T-X
Nominal rating power Pnom, kVA/kW 30/27
Number of phases at input/output 3/1
Charging current provided by the UPS charger, A 12,0
Built-in rechargeable batteries No
Battery rated voltage, V 240
Overall dimensions (HxWxD), mm 826x250x815
Weight, kg 64
Трёхфазные ИБП серии EcoPower (On-Line) ATS 30000 3/3 T-BX
Nominal rating power Pnom, kVA/kW 30/27
Number of phases at input/output 3/3
Charging current provided by the UPS charger, A 4,0
Built-in rechargeable batteries Yes
Battery rated voltage, V 240
Overall dimensions (HxWxD), mm 1000x300x815
Weight, kg 234
Трёхфазные ИБП серии EcoPower (On-Line) ATS 30000 3/3 T-X
Nominal rating power Pnom, kVA/kW 30/27
Number of phases at input/output 3/3
Charging current provided by the UPS charger, A 12,0
Built-in rechargeable batteries No
Battery rated voltage, V 240
Overall dimensions (HxWxD), mm 826x250x815
Weight, kg 64
